04 February 2010 - IPETRONIK, the world’s leading manufacturer of mobile measurement technology in the automotive industry, announced that the “SAM-HViso DC1000” high voltage divider has successfully passed the safety testing performed by TÜV SÜD. This examination was conducted in accordance with the safety standards for electrical devices for test, measurement, control and laboratory tasks in accordance with the EN 61010-1, EN 61010-031 standard. This confirms in detail that all the components are isolated, that the dimensions of the clearance and creepage distances are sufficient and that the device passed the electric strength test. Consequently, the device may also be used in 230/400 VAC/ 50 Hz power networks.

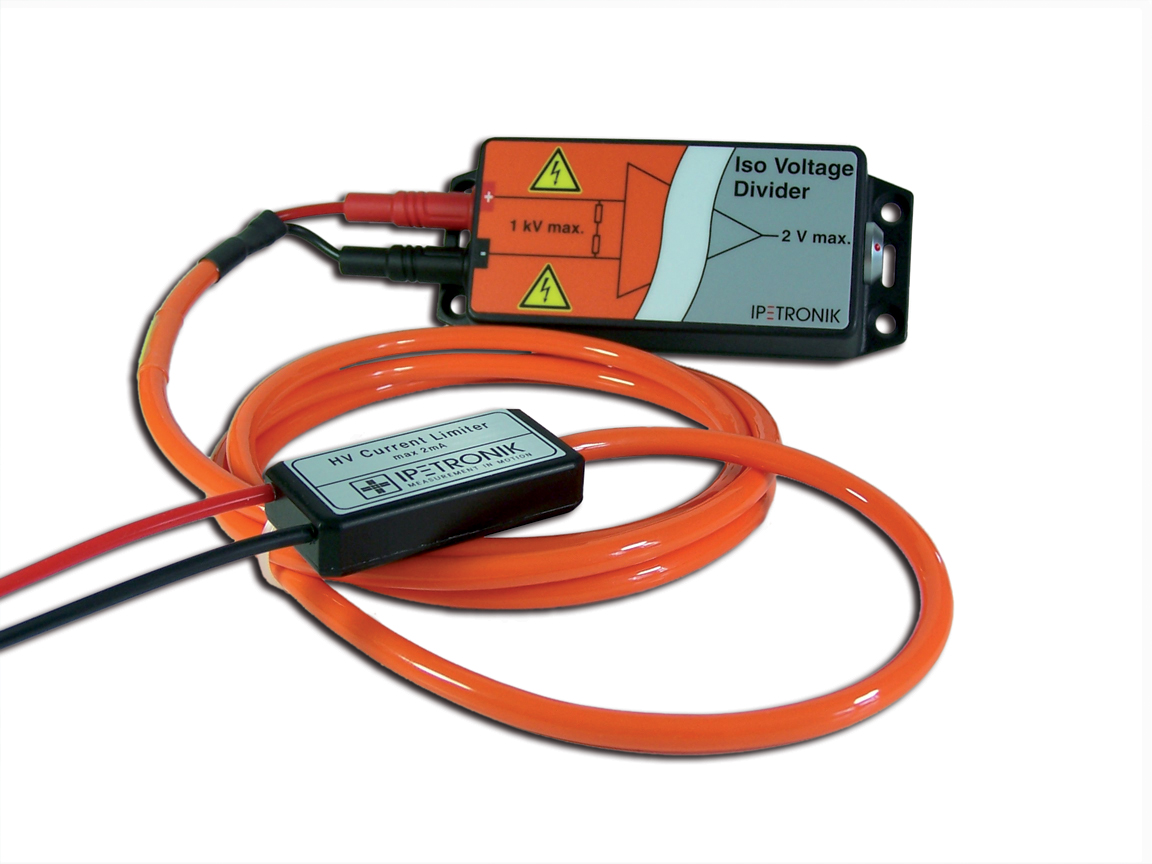

SAM-HViso DC1000 is a high voltage divider with full electrical isolation that allows reliable voltage measurement for batteries and DC power circuits in electric and hybrid vehicles. The new solution consists of two components that is used as a cut-in module for measurements on high-voltage systems. The first component, the ISO voltage divider, is an electrically isolating amplifier. This is used as a pre-stage for standard voltage-measurement modules, and has the advantage of allowing continued use of the existing measuring equipment. The second part is an intrinsically safe measurement cable with current-limiting resistors at the terminal points. The characteristics of these resistors are chosen in a way to keep the leakage current below the level that would be injurious to persons, in case of a damaged measurement cable.
The ISO voltage divider is enclosed in a 100 mm x 51 mm x 25 mm (L x W x H) housing. It conforms to Protection Class IP67, and works in the temperature range of –20 °C to +70 °C. Further technical specifications for the new solution are a standard measuring range of ±1000 V, a continuous isolation voltage of ±1100 V, and a test isolation voltage (1 s) of ±2500 V. The amplifier impedance is 20 MΩ//20 pF, and the measurement input impedance is 21 MΩ//(20 pF + approx. 100 pF/m). The signal frequency is in the area of 2 kHz for a length of one meter of measuring cable.
“The fast-paced development for electric and hybrid vehicles confronts test and measurement technicians with completely new voltage potentials. Whereas in the past, an isolation voltage of 500 V was usually sufficient, that is no longer the case with new vehicle concepts with voltages of up to 1000 V. In this range, galvanic isolation is indispensable, because large differences in potential lead to falsified measurement results. Furthermore, short circuiting and other damage can occur if the galvanic isolation is insufficient,” said Andreas Geh, director of sales & marketing at IPETRONIK. “The SAM-HViso DC1000 high-voltage divider for direct current is the ideal solution for electric and hybrid vehicles, because it makes it possible to perform reliable measurements on DC circuits for high voltage batteries.”
